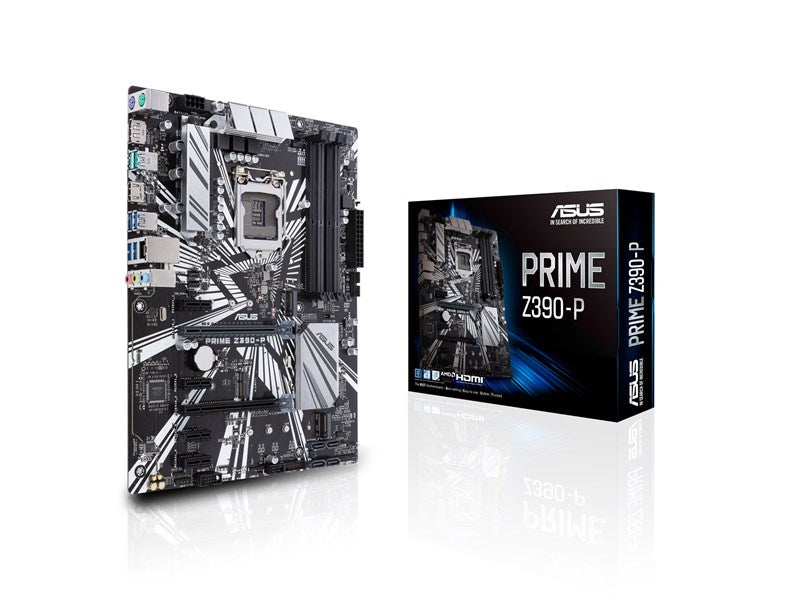

he ASUS PRIME Z390-P uses Z390 chipset and supports Intel's 9th generation Coffee Lake-S refresh processors.
The Features of the ASUS PRIME Z390-P Motherboard at a Glance:
- 2x PCIe (3.0) x16 (x16/x4) & 4x PCIe x1
- 2x USB 3.1 (2x Type A)
- Total of 8x USB 3.0 and 3x USB 2.0 (internal & external)
- 2x M.2 (1x PCIe 3.0 x4) / 4x SATA 6G
- Supports max. 64 GB DDR4-RAM up to 4.133 MHz
The ASUS PRIME Z390-P in Detail:
Using the cutting edge i9-9900K processor, the ASUS PRIME Z390-P natively supports speeds of up to 2666 MHz, and up to 4133 MHz with overclocking. It can handle intense graphic applications since it is compatible with AMD's CrossFireX technologies for linking multiple GPUs.
There are also numerous technical innovations, enhancements and an array of storage solutions. For instance, there are two PCIe x16 slots, as well as four further PCIe x1 slots. It has two M.2 slots capable of running ultra fast NVMe-M.2 SSDs, resulting in a data transfer rate of nearly 4 GB/s. This makes M.2 PCIe SSDs up to eight times faster than SATA 6G SSDs.
There are 4 SATA 6G connectors for 3.5"- or 2.5" hard drives and -SSDs (incl. RAID support). Up to 64GB of RAM can be added across four DIMM slots.
The board offers excellent options for connecting external peripherals. The motherboard comes with an I/O panel boasting an array of the very latest and greatest connectivity standards including eight USB 3.0 and three USB 2.0 (internal & external).
Video is displayed via an HDMI or DisplayPort 1.2 while a Realtek 8111H port allows for excellent sound output
Specification:
-
Form factor:
ATX
-
Chipset:
Intel Z390
-
Socket:
1151(v2) (for 8th- and 9th Core generation Intel CPUs)
-
RAM:
4x DDR4 (2666 MHz, up to 4133 MHz via OC)
Dual-Channel
Max. 64 GB
-
Slots (physical):
1x PCIe 3.0 x16
1x PCIe 3.0 x16 (electrical x4)
Compatible Multi-VGA Configurations: 2-Way AMD CrossFire
4x PCIe 3.0 x1
1x M.2 Key E (horizontal)
-
Internal Connections:
4× SATA 6G
2x M.2 (PCIe 3.0 x2 & SATA; 2242 / 2260 / 2280)
4x USB 3.0 (Type A, 2 Header)
2x USB 2.0 (one header, 9-Pin)
1x USB 2.0 (one header, 4-Pin)
1x CPU Fan Header (4-Pin)
2x Fan Header (4-Pin)
1x AiO Pump Header
1x COM Header
1x Clear CMOS Jumper
1x MemOK! Button
1x Front Panel Audio C
1x RGB-LED-Header (4-Pin)
-
External Connections:
1x PS/2 Mouse
1x PS/2 Keyboard
2× USB 3.1 (2× Type A)
4x USB 3.0
1x HDMI 1.4b
1x DisplayPort 1.2
1x Gigabit LAN (Realtek 8111H)
3x Audio (Realtek ACL887 Codec)
-
Power Supply:
1x 24-Pin ATX 12V
1x 8-Pin ATX 12V
